Wiring Diagrams


’82 thru ’85 Camaro V8


Reference diagrams for the electrical systems…

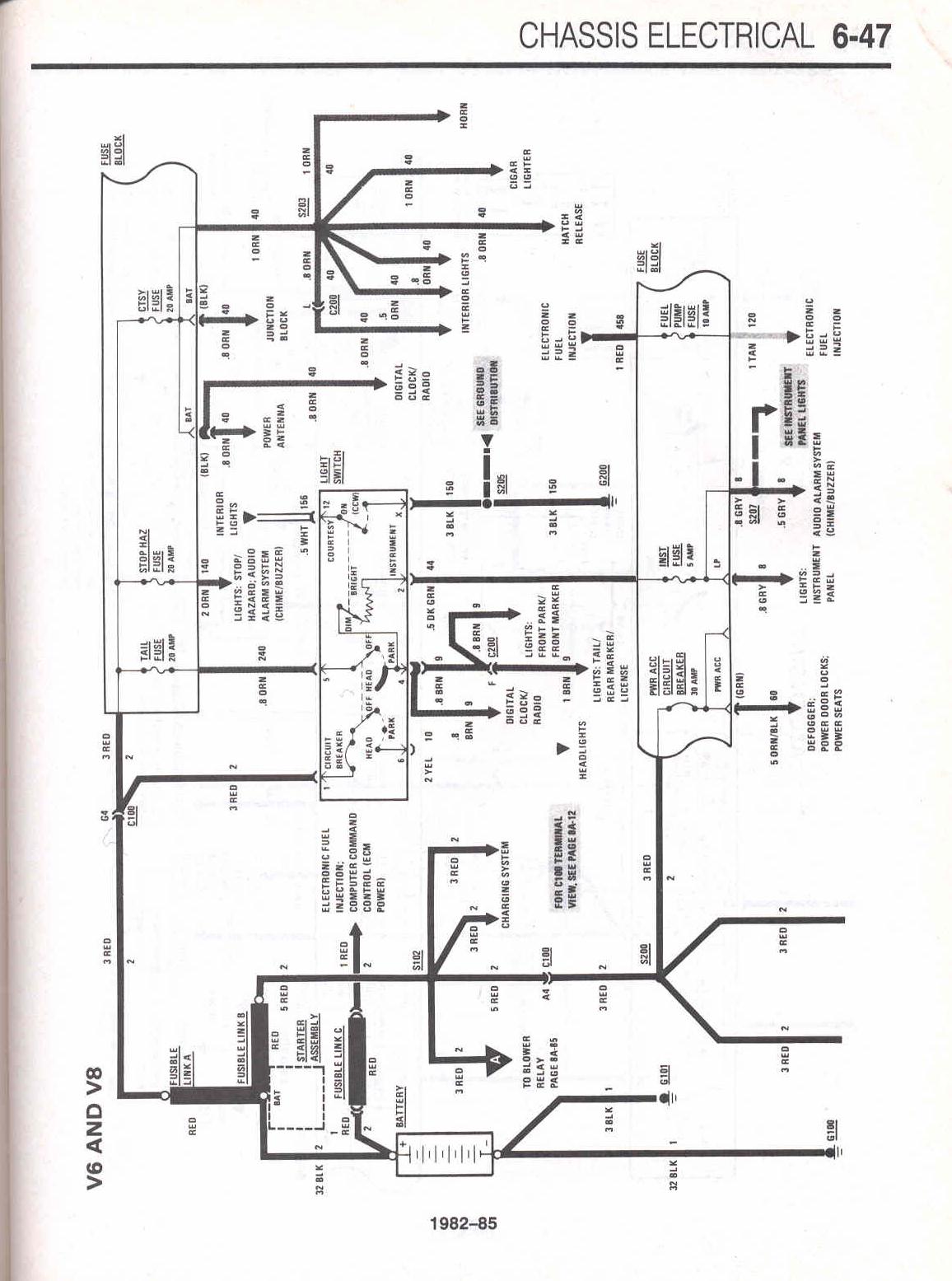

Power Distribution

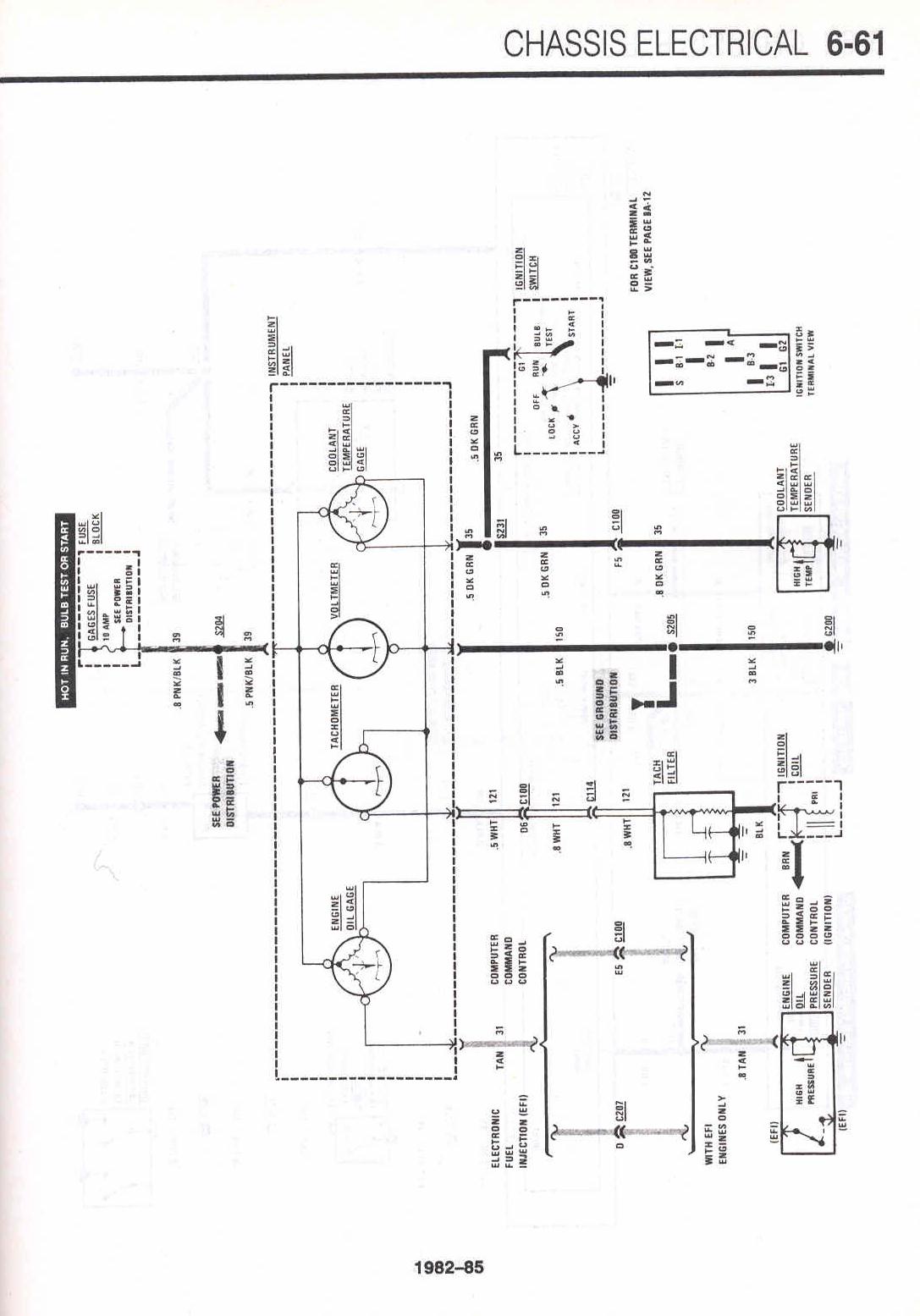

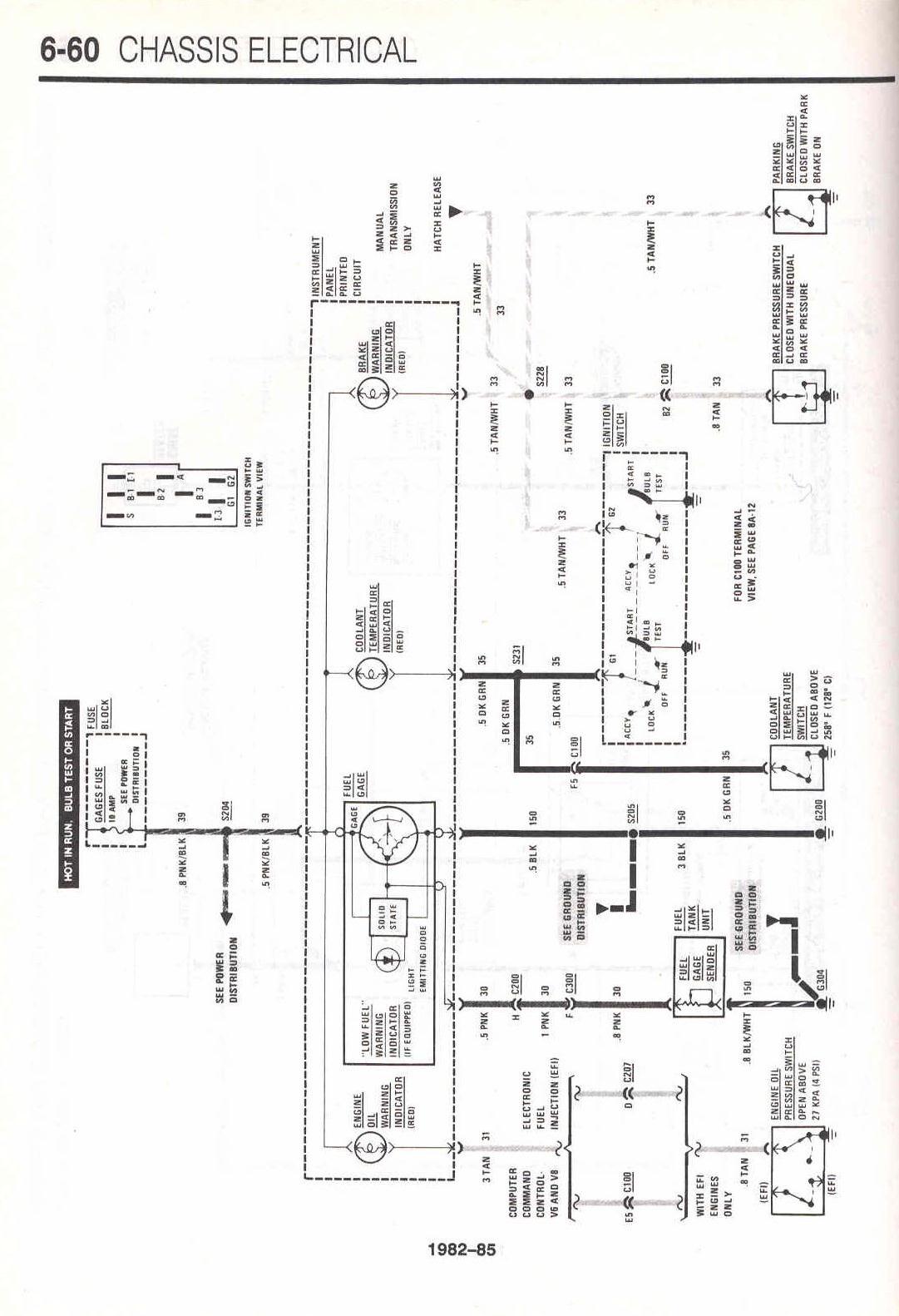

Oil Pressure / Tach / Coolant Temp

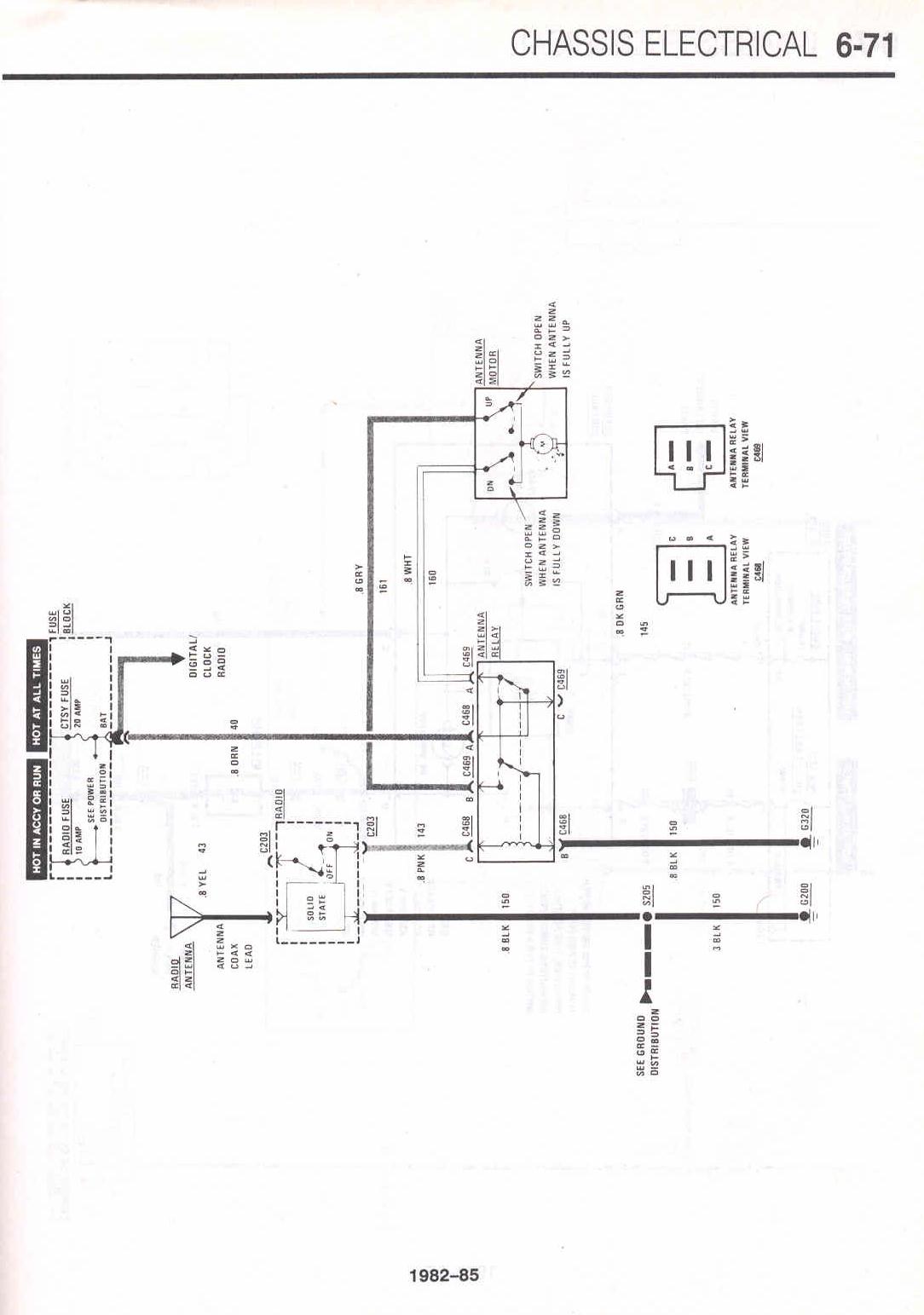

Power Antenna

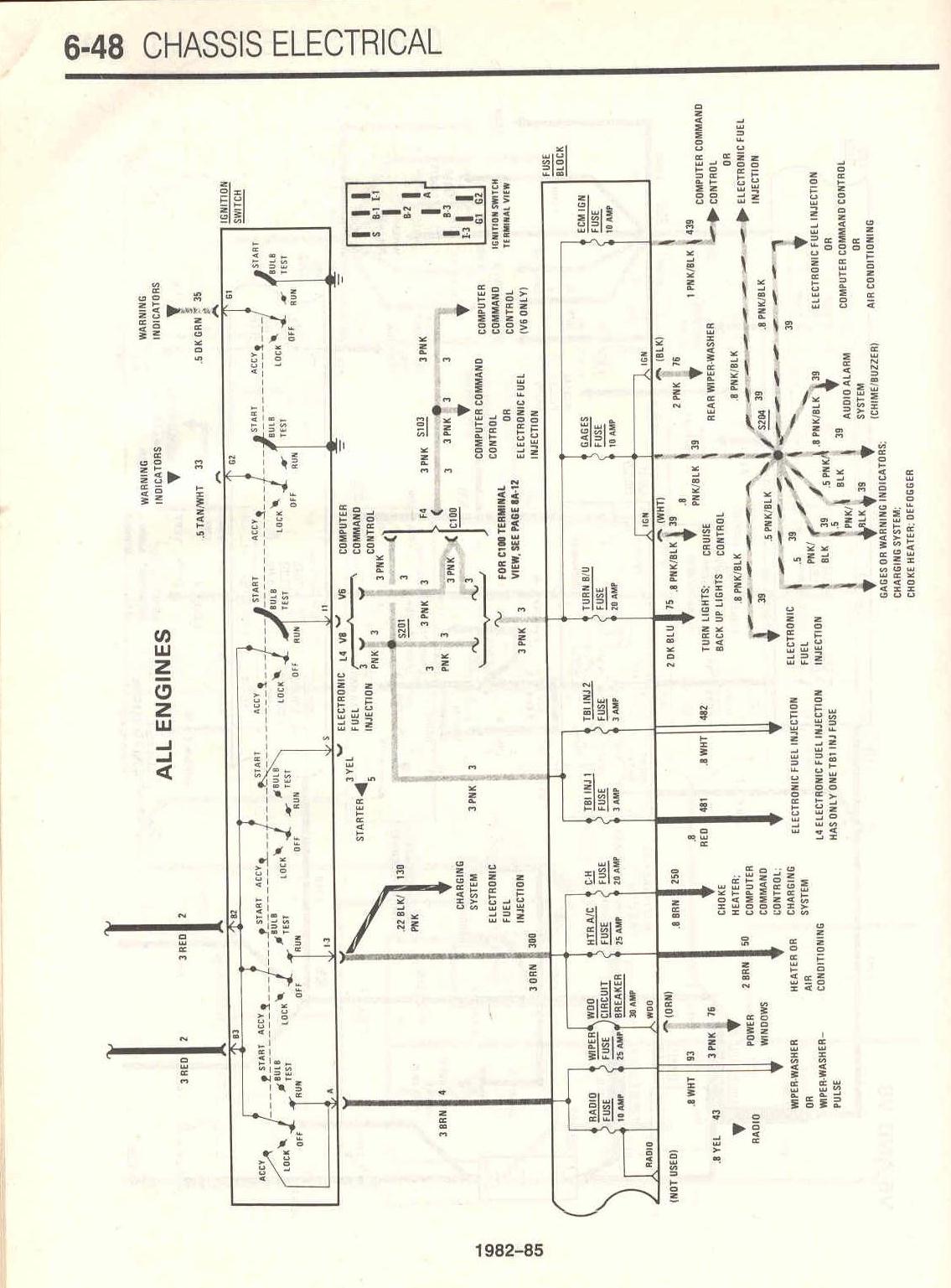

Ignition Switch / Fuses

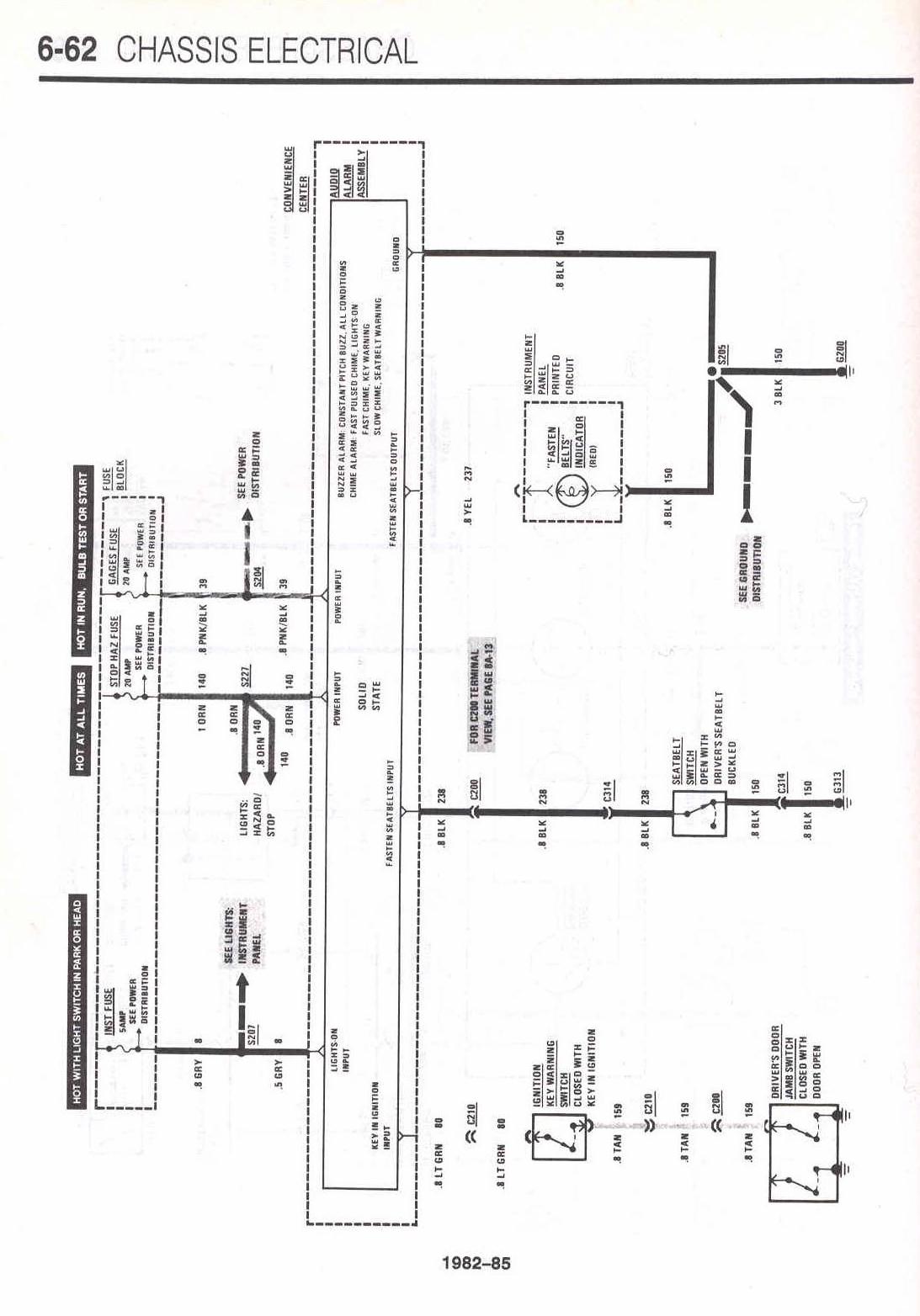

Door Jamb, Seatbelt Sensors

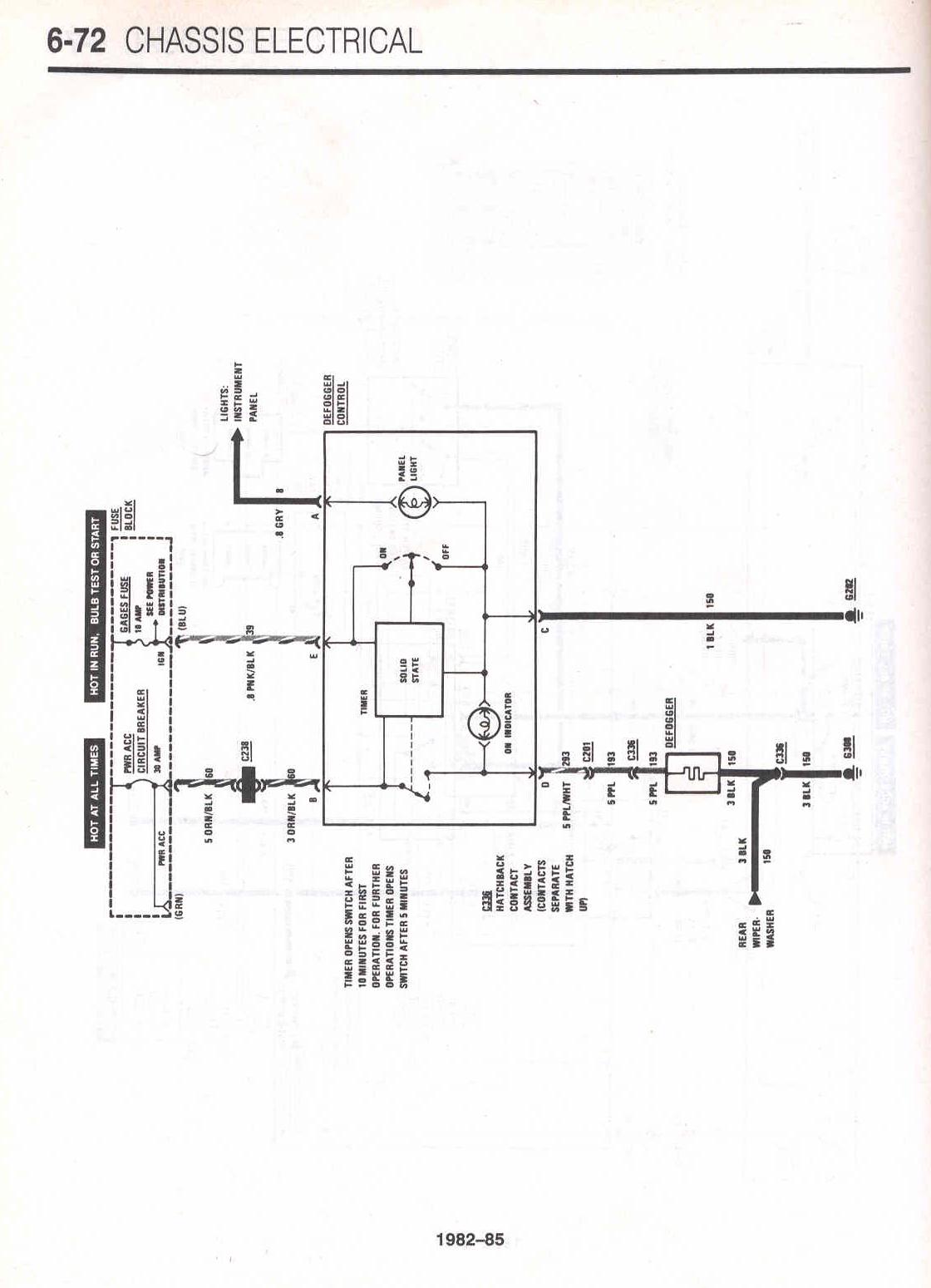

Rear Defogger

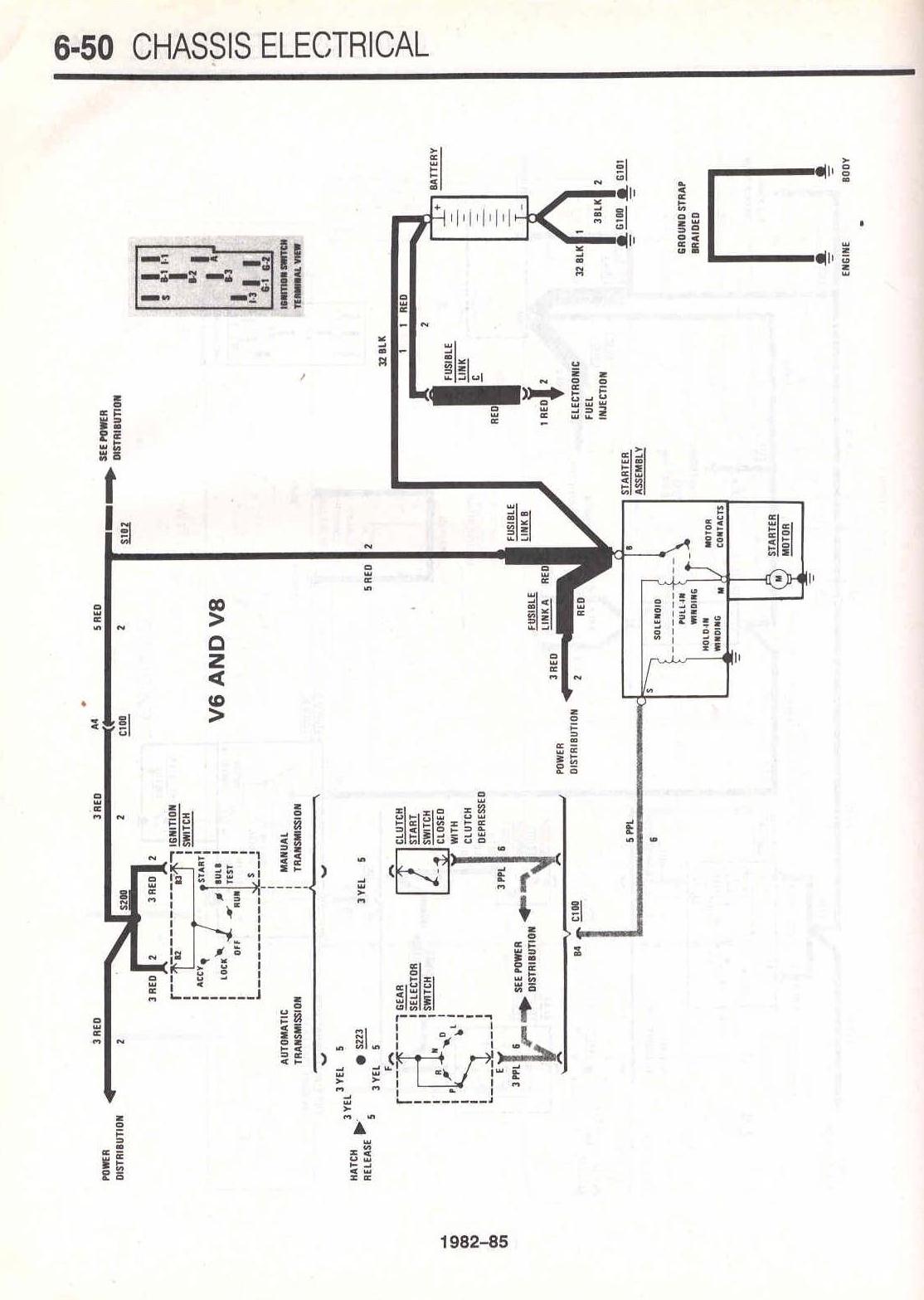

Starter Wiring

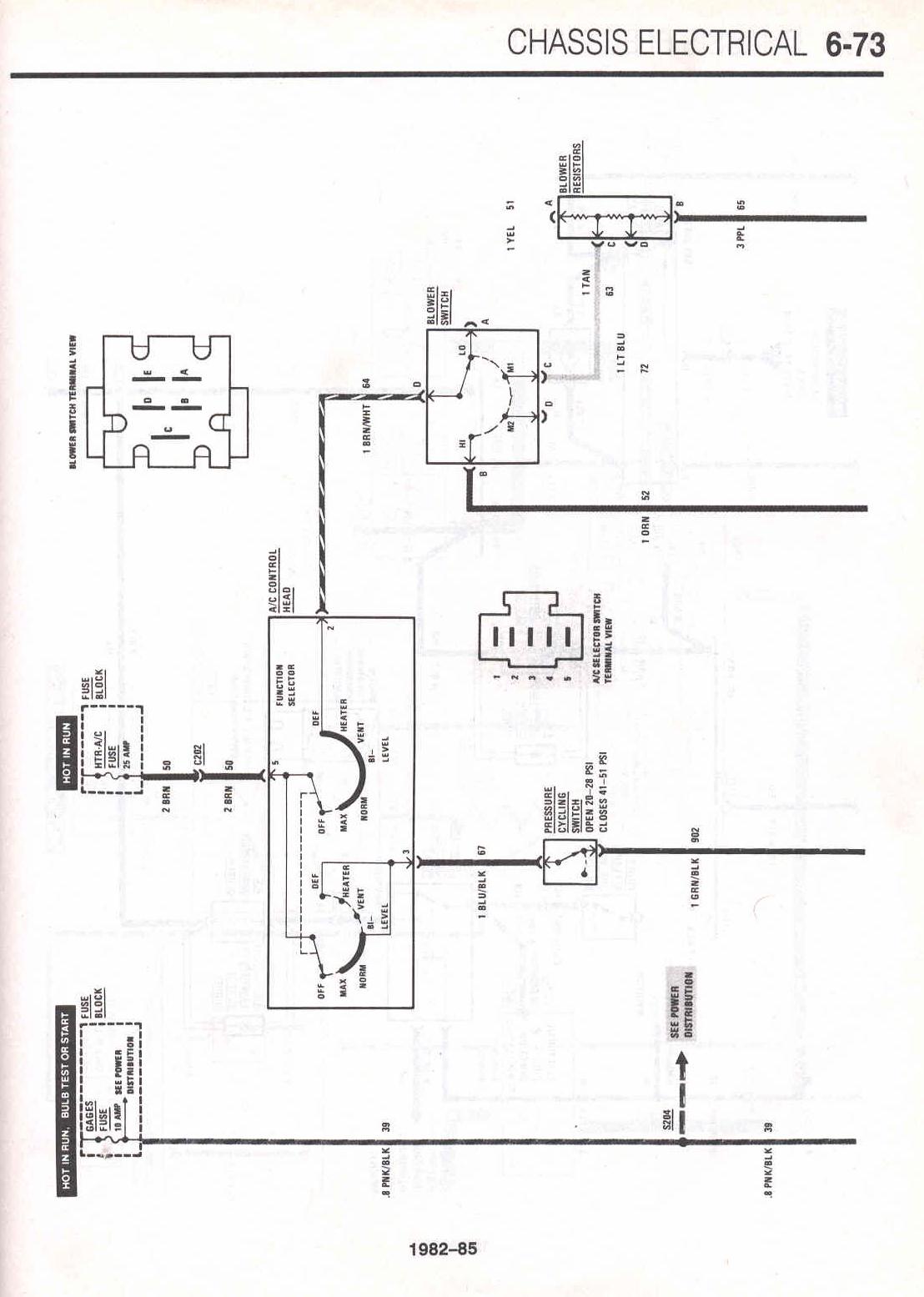

AC and Blower - #1

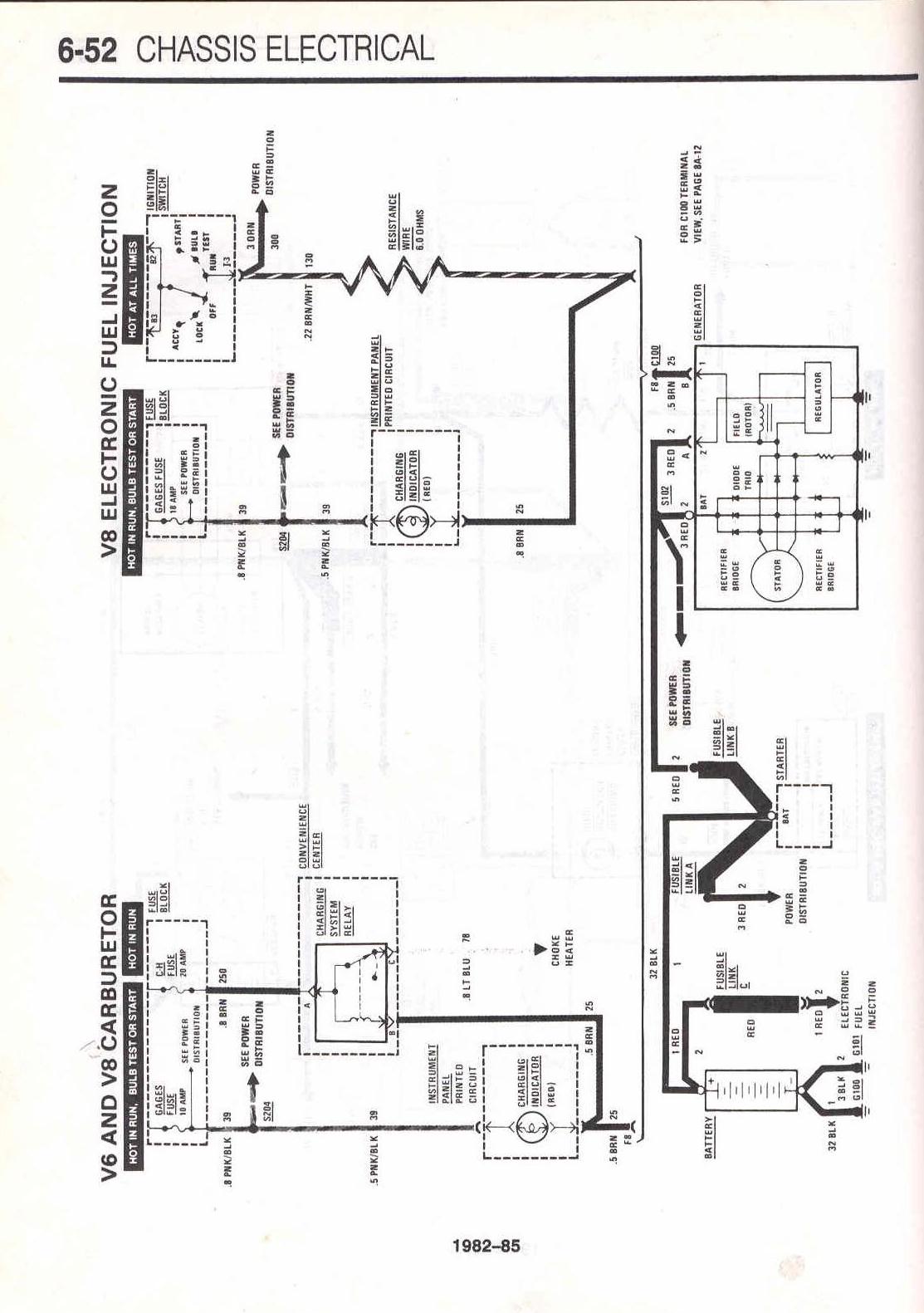

Alternator Wiring

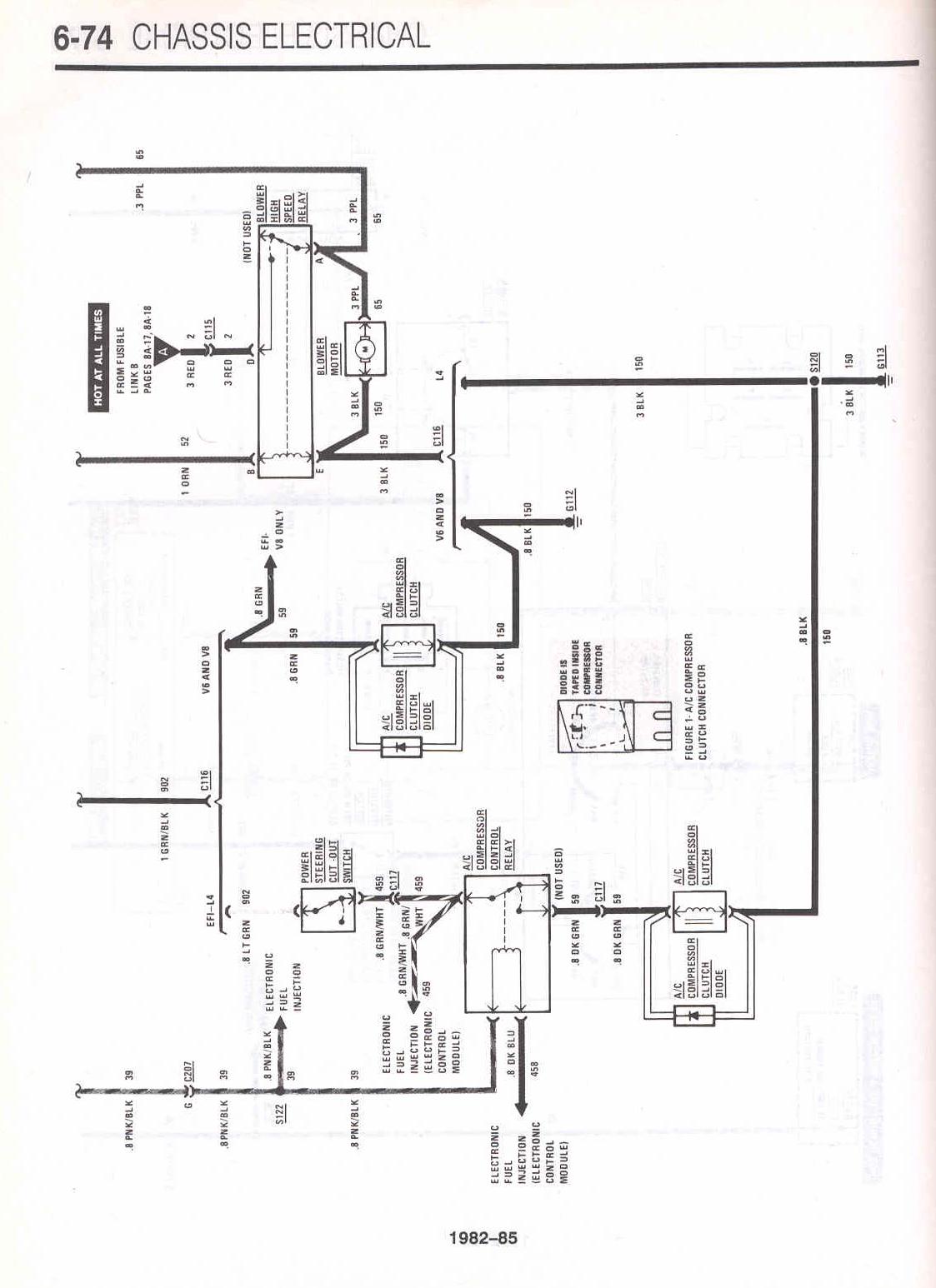

AC and Blower - #2

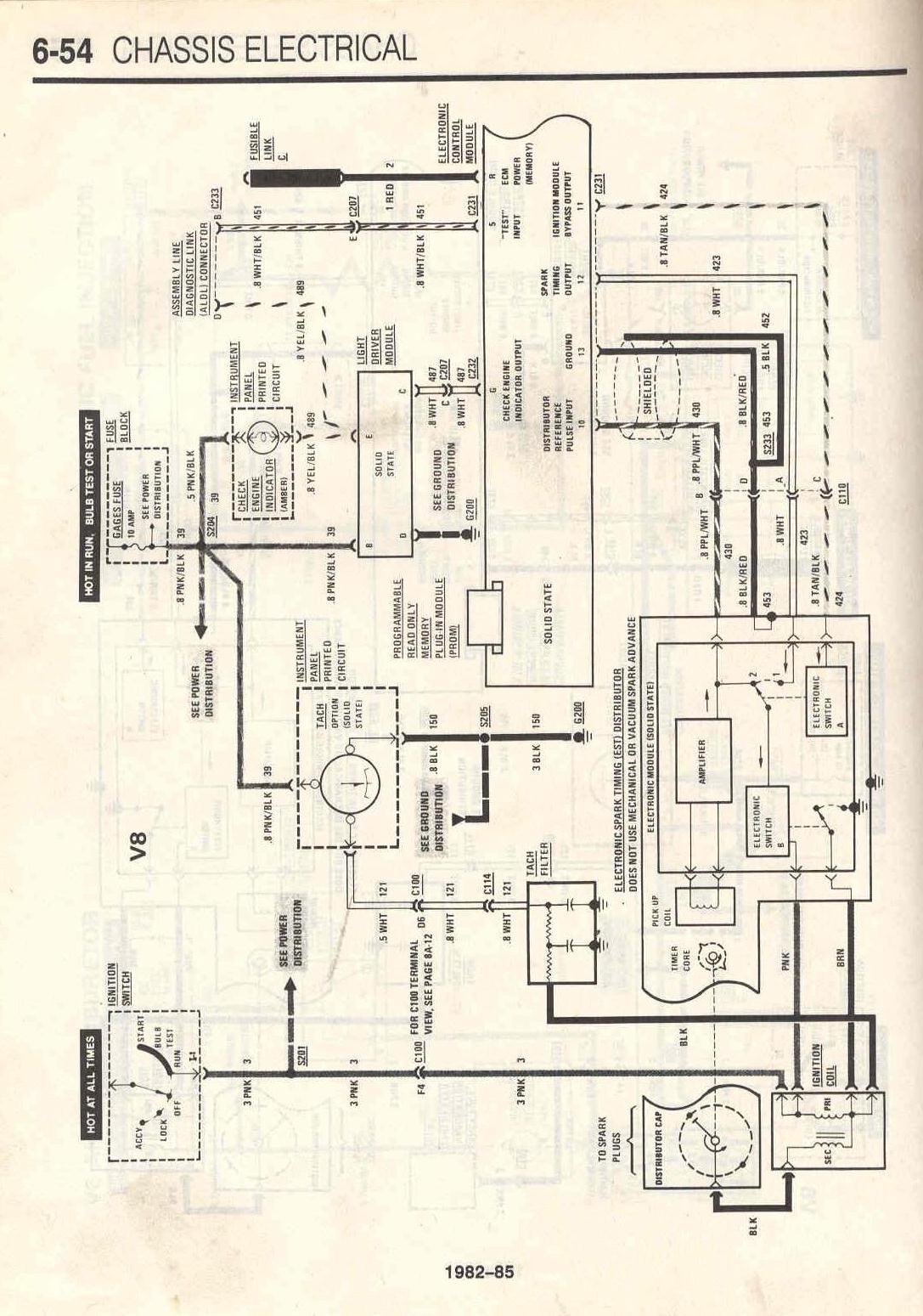

Ignition Wiring

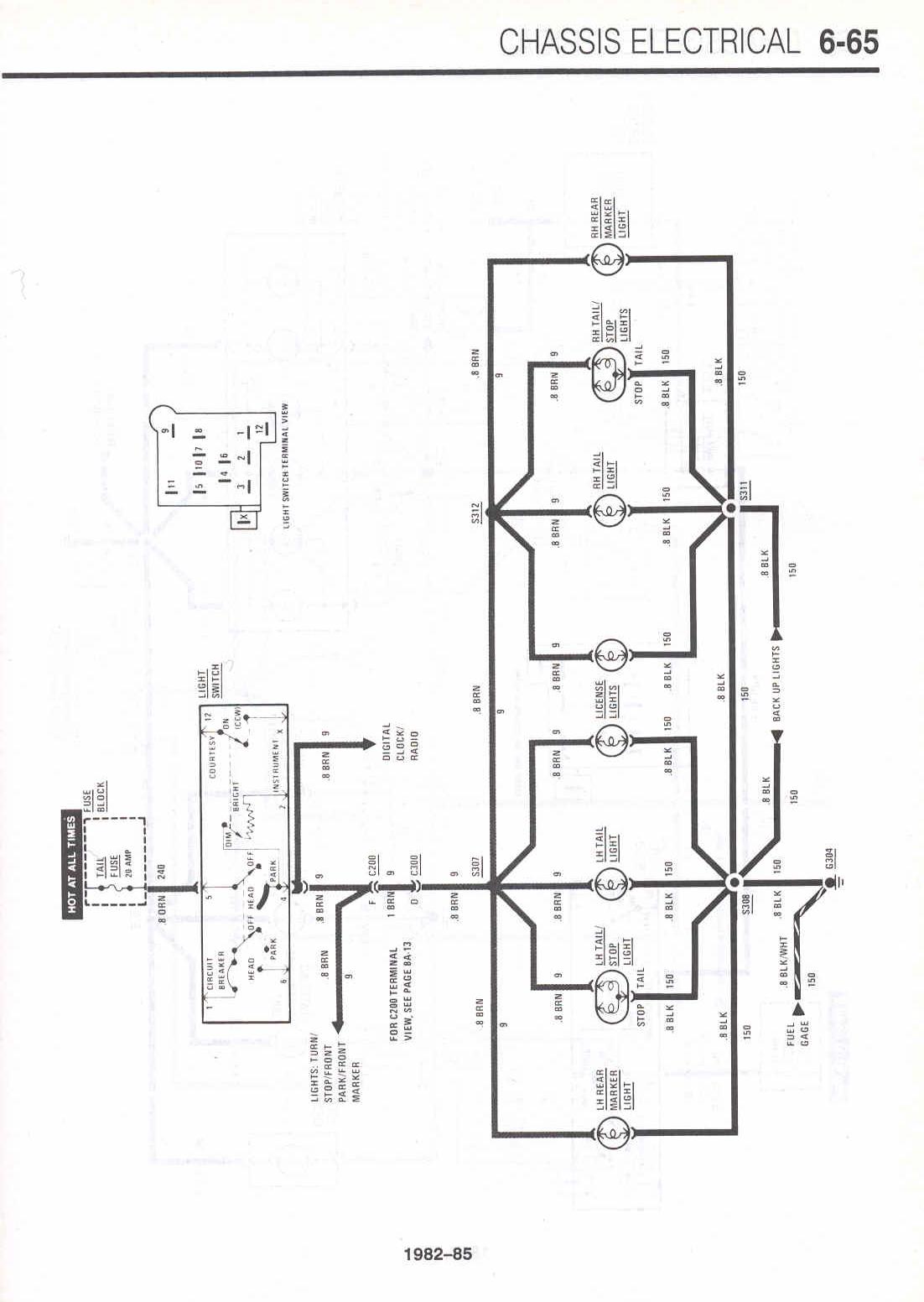

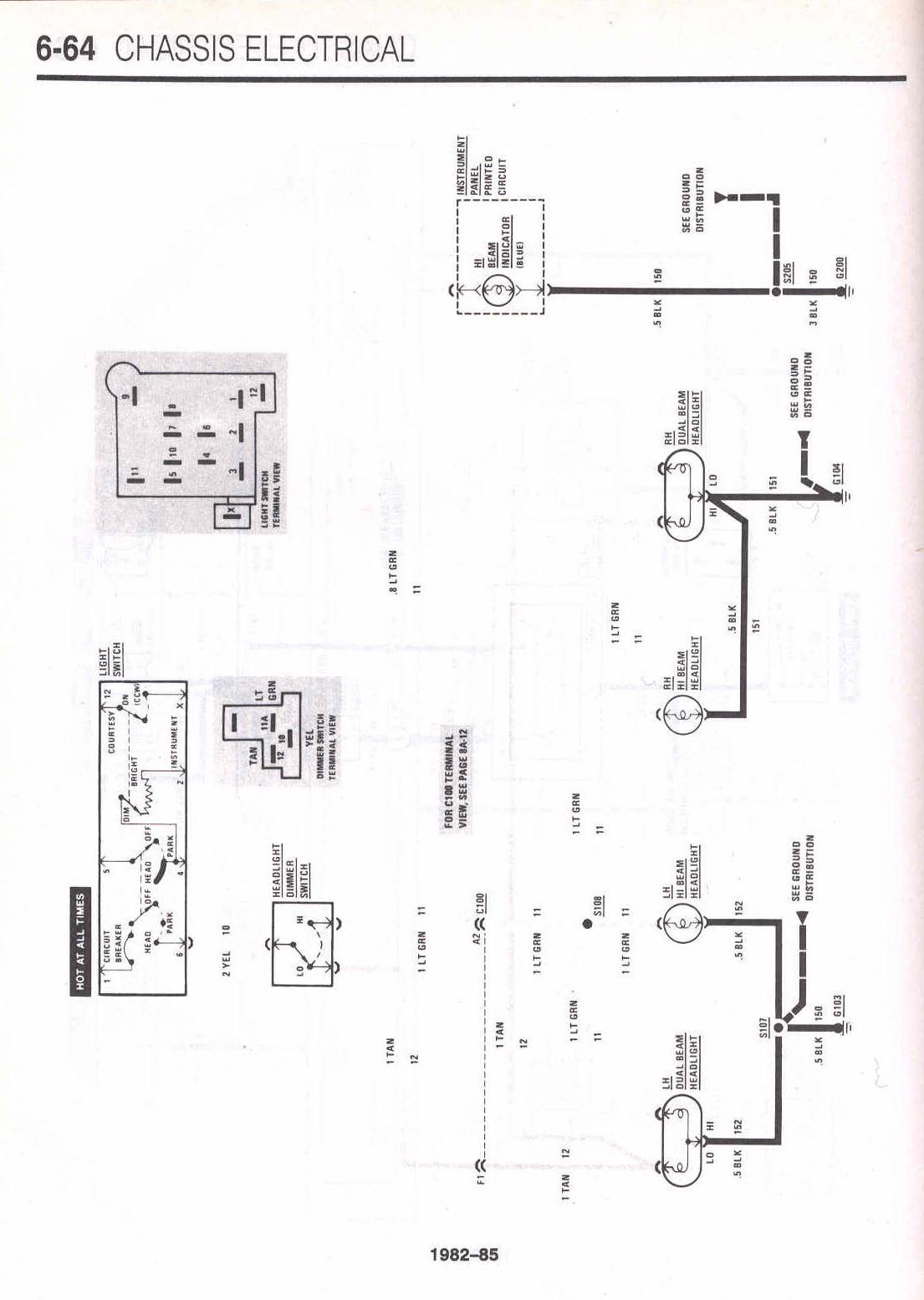

Side Markers / Tail Lights

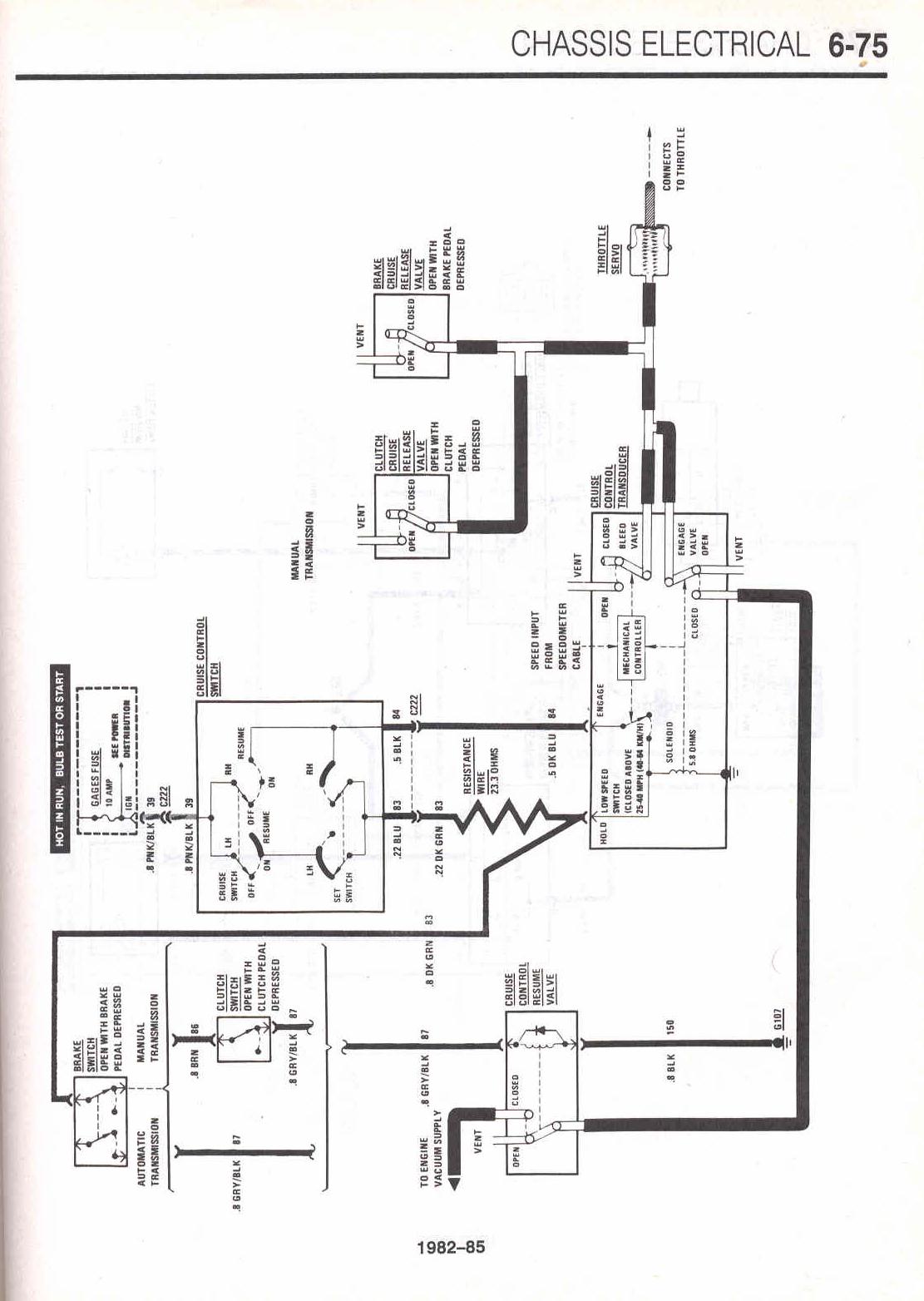

Cruise Control

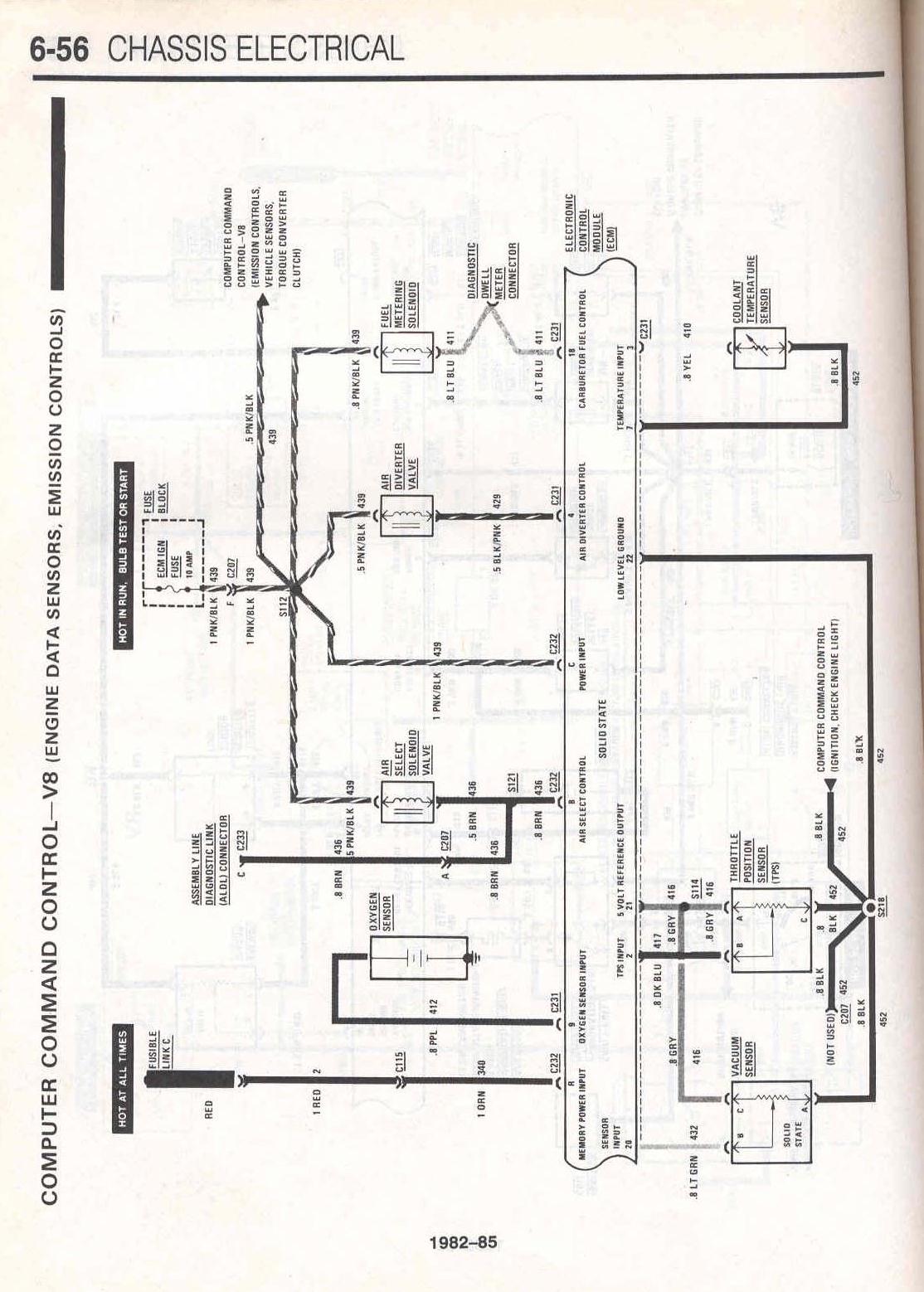

Engine Sensors / Emission Controls

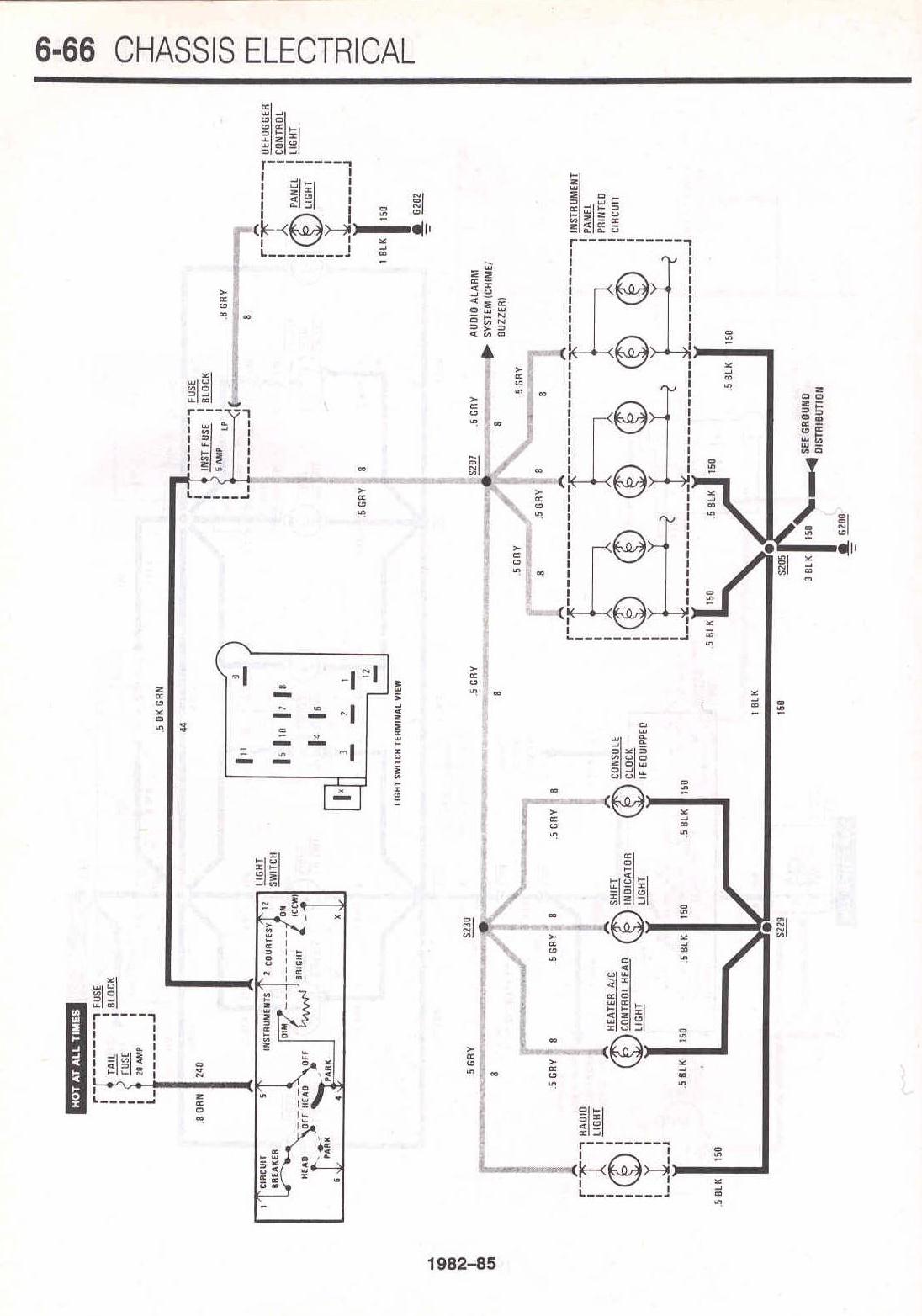

Interior / Console Lights

Power Windows

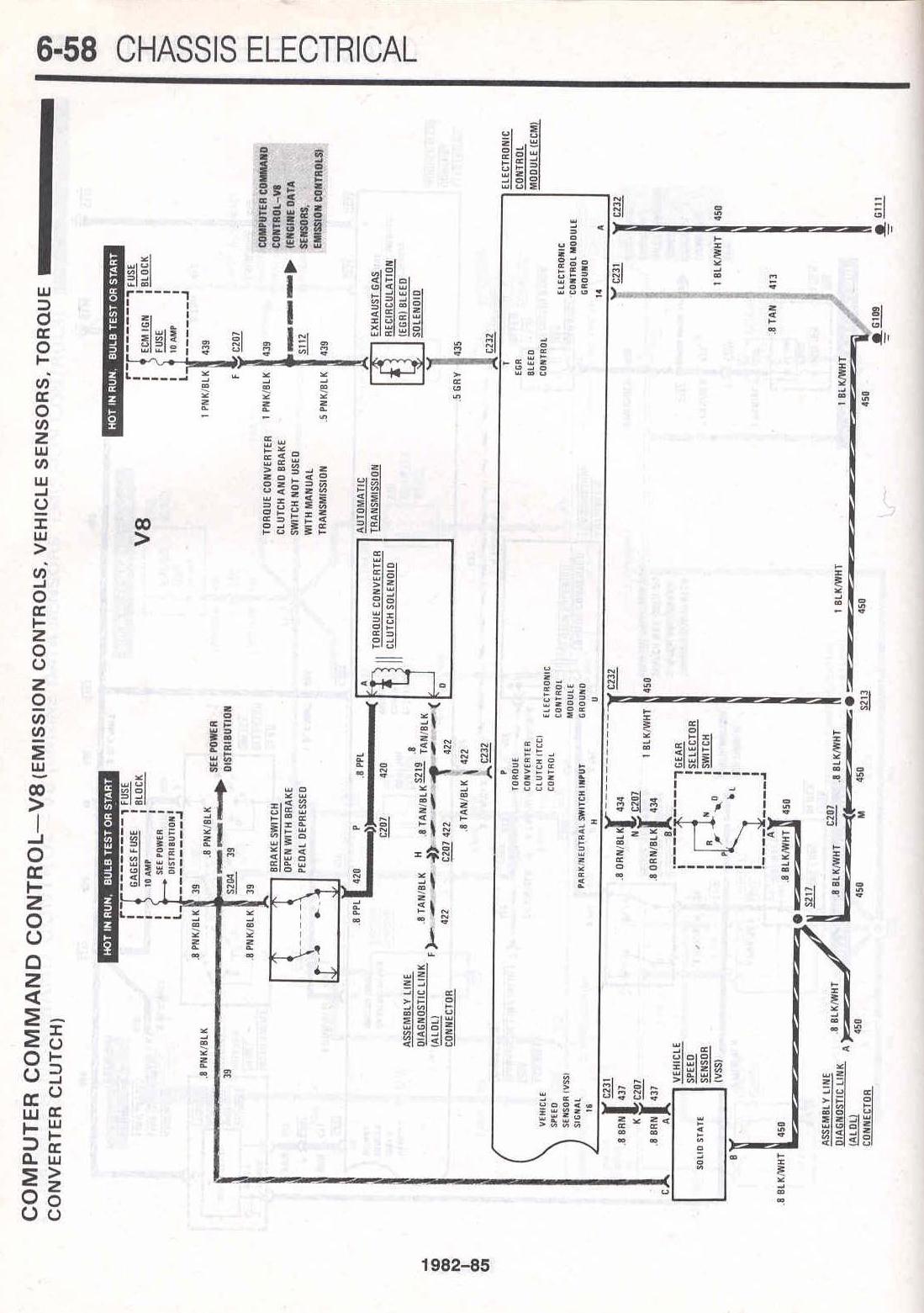

EGR / Transmisson Sensors

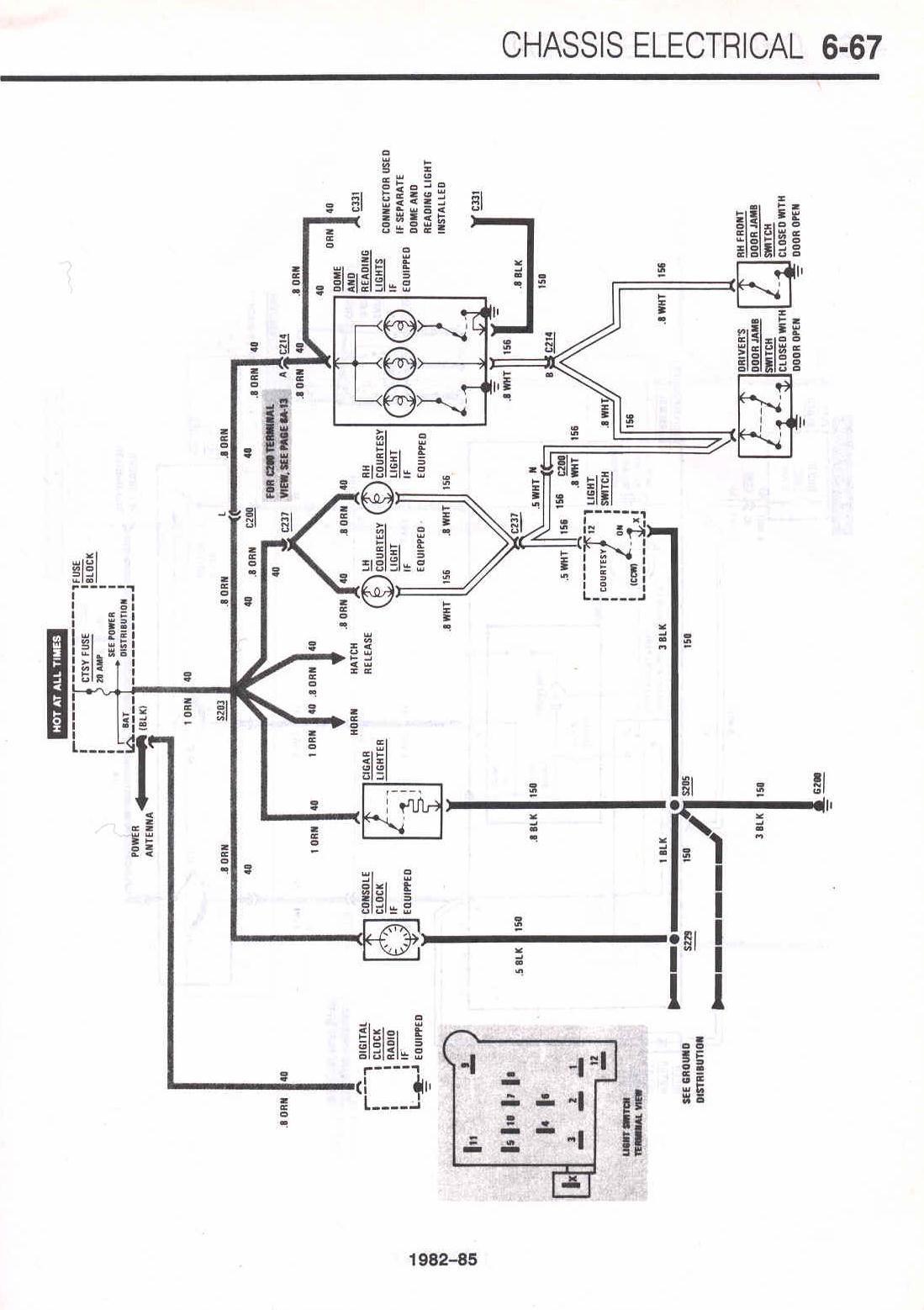

Interior Lights, Radio, Lighter

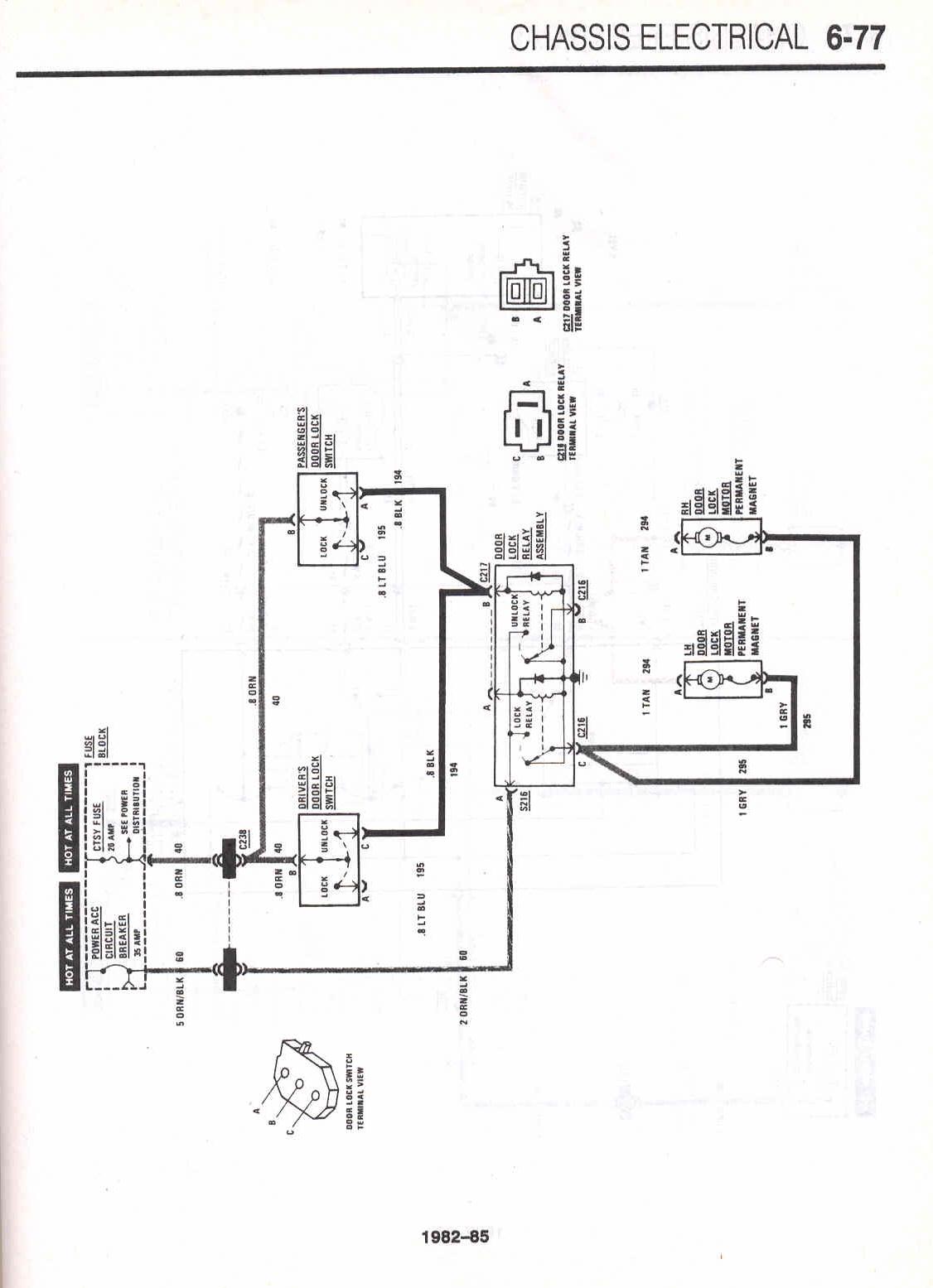

Power Door Locks

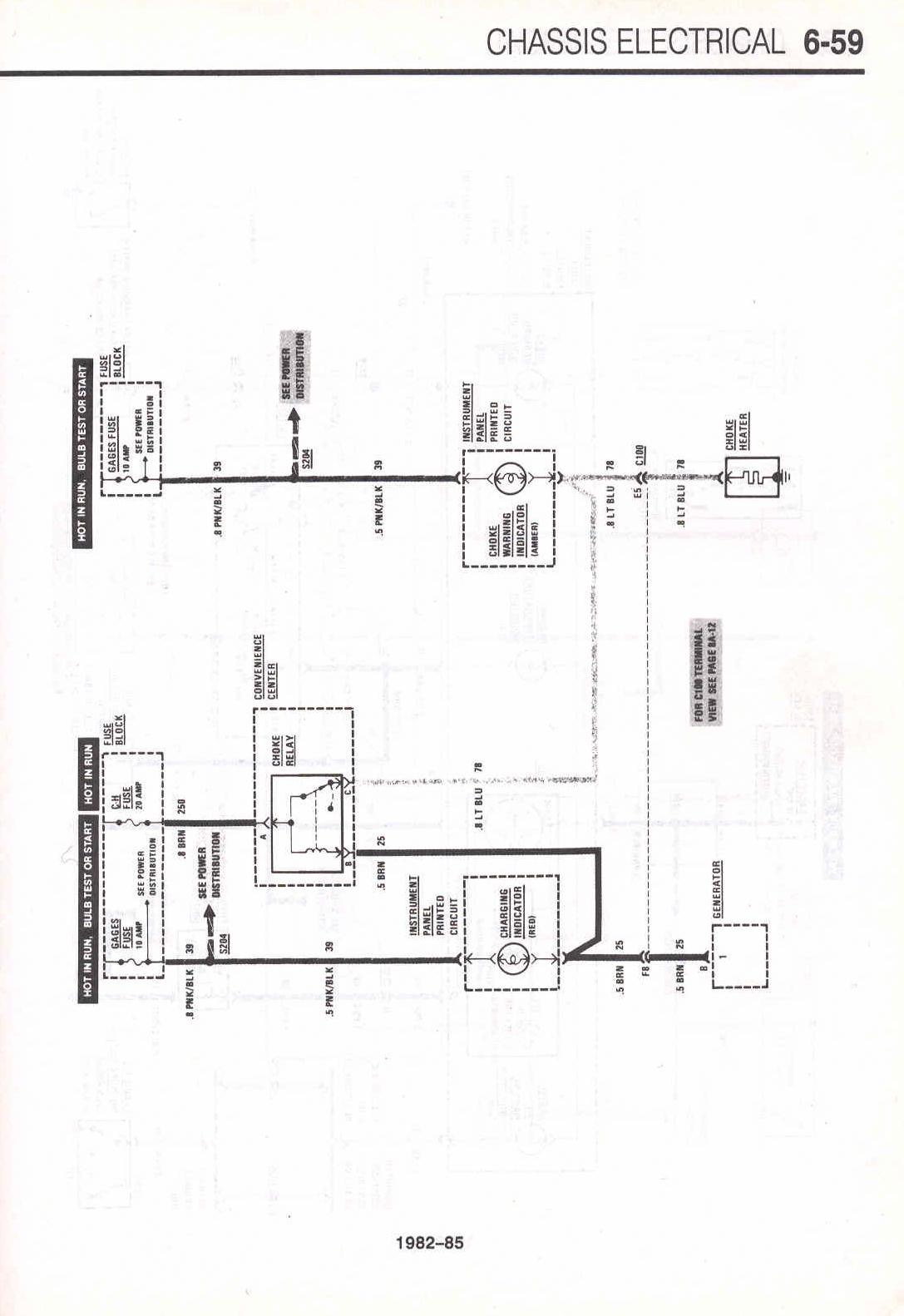

Electric Choke

Standard Wiper Control

Power Mirrors

Brake / Coolant / Fuel Sensors

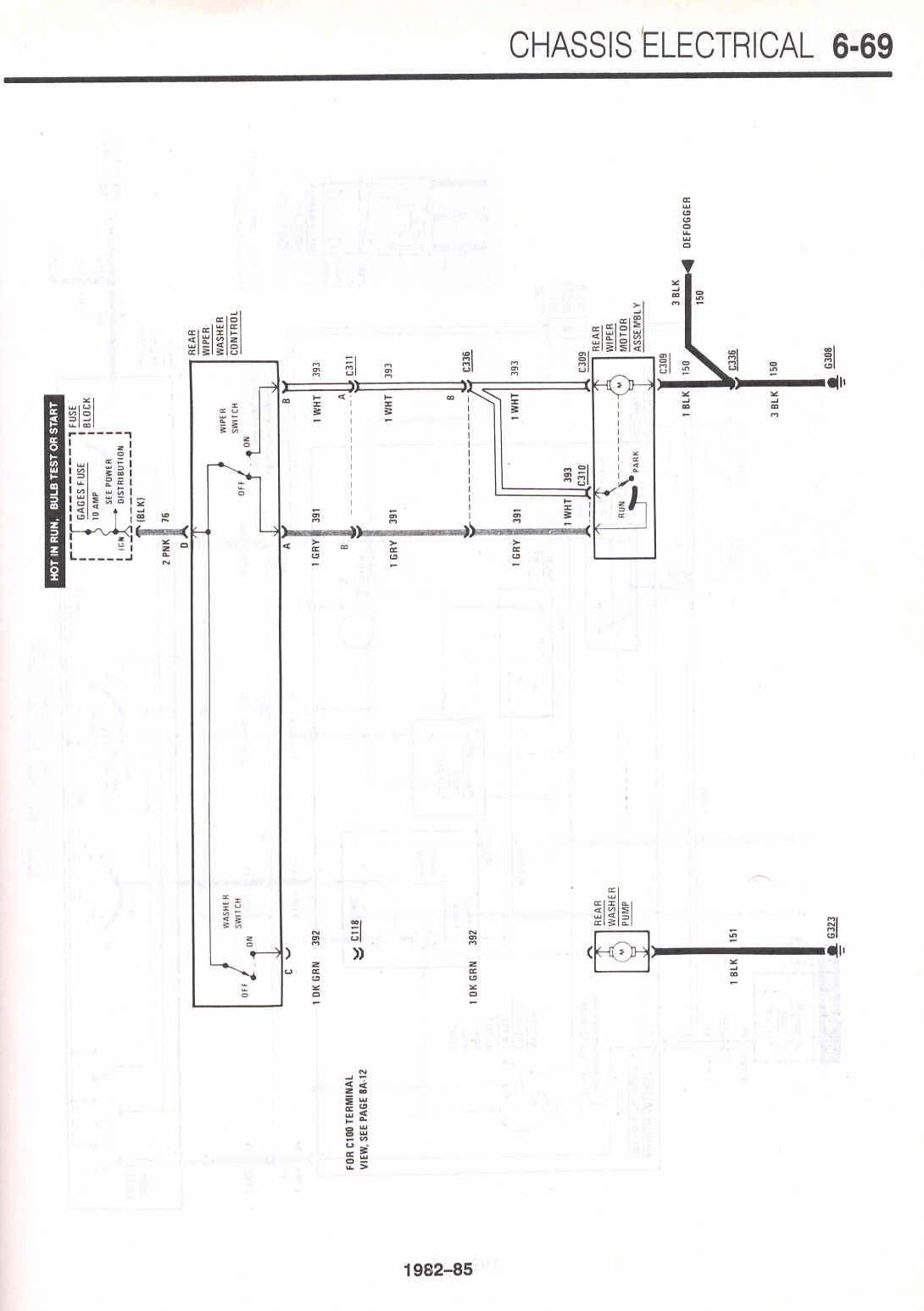

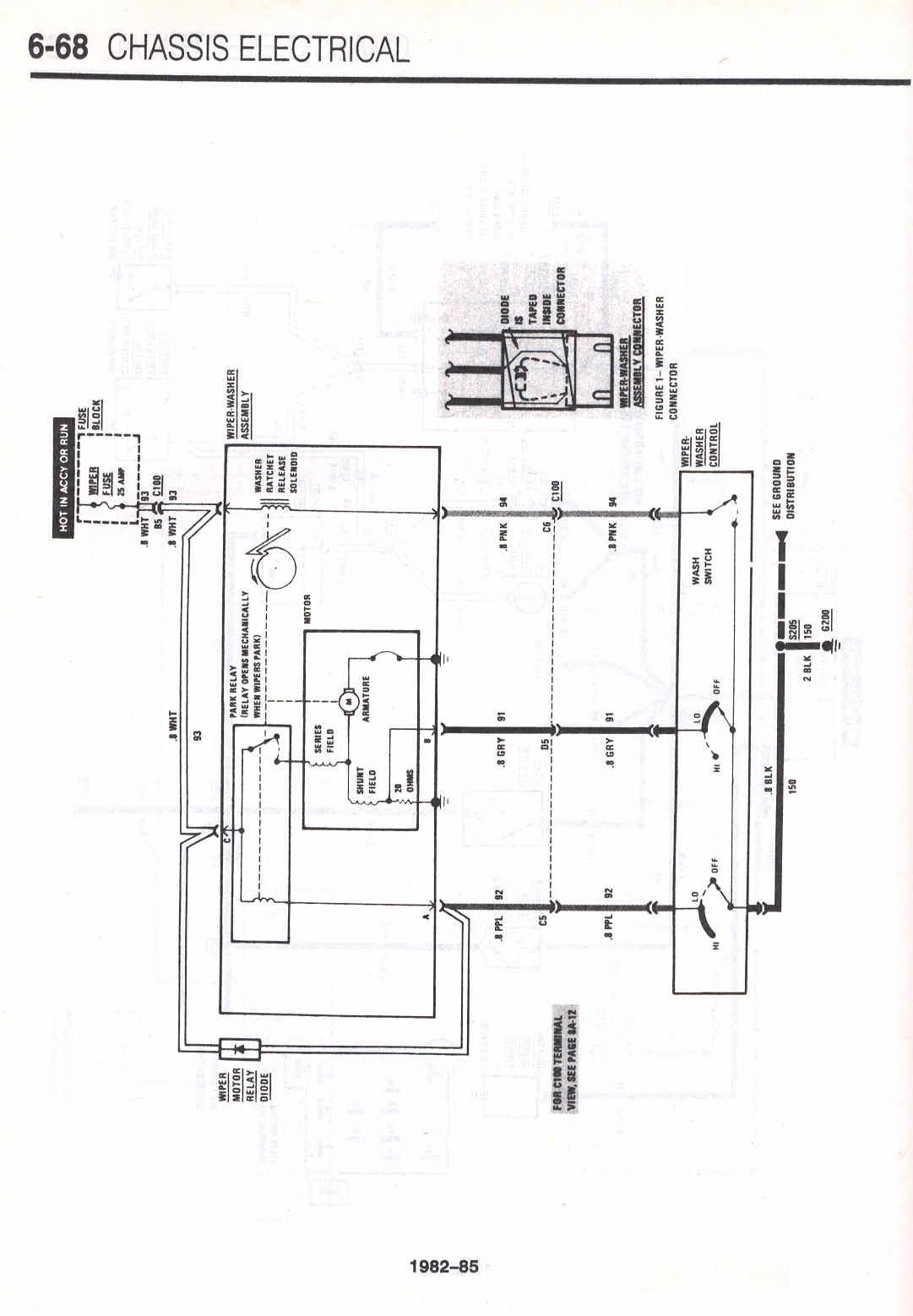

Rear Wiper / Washer

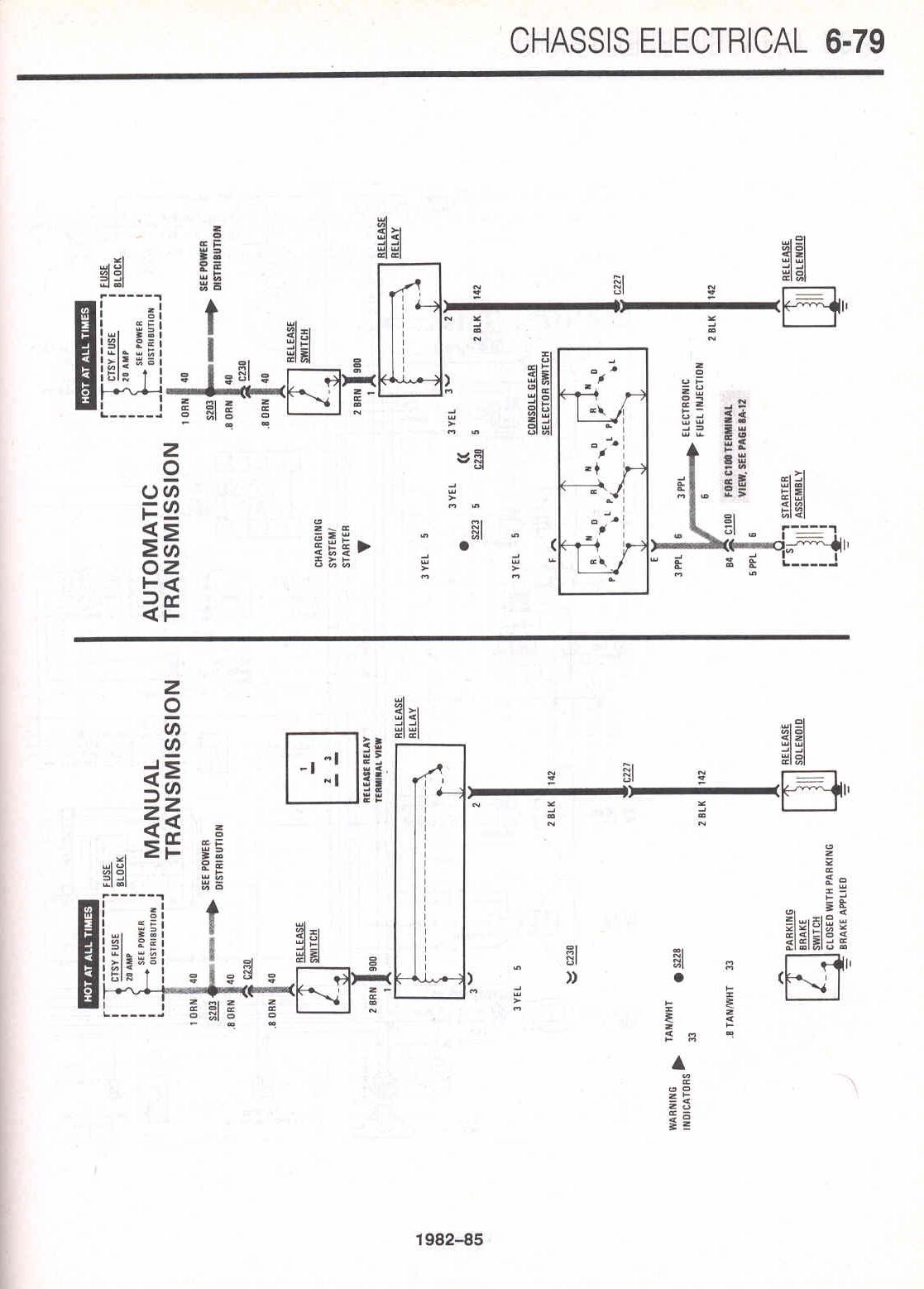

Gear Shift / Clutch Switches

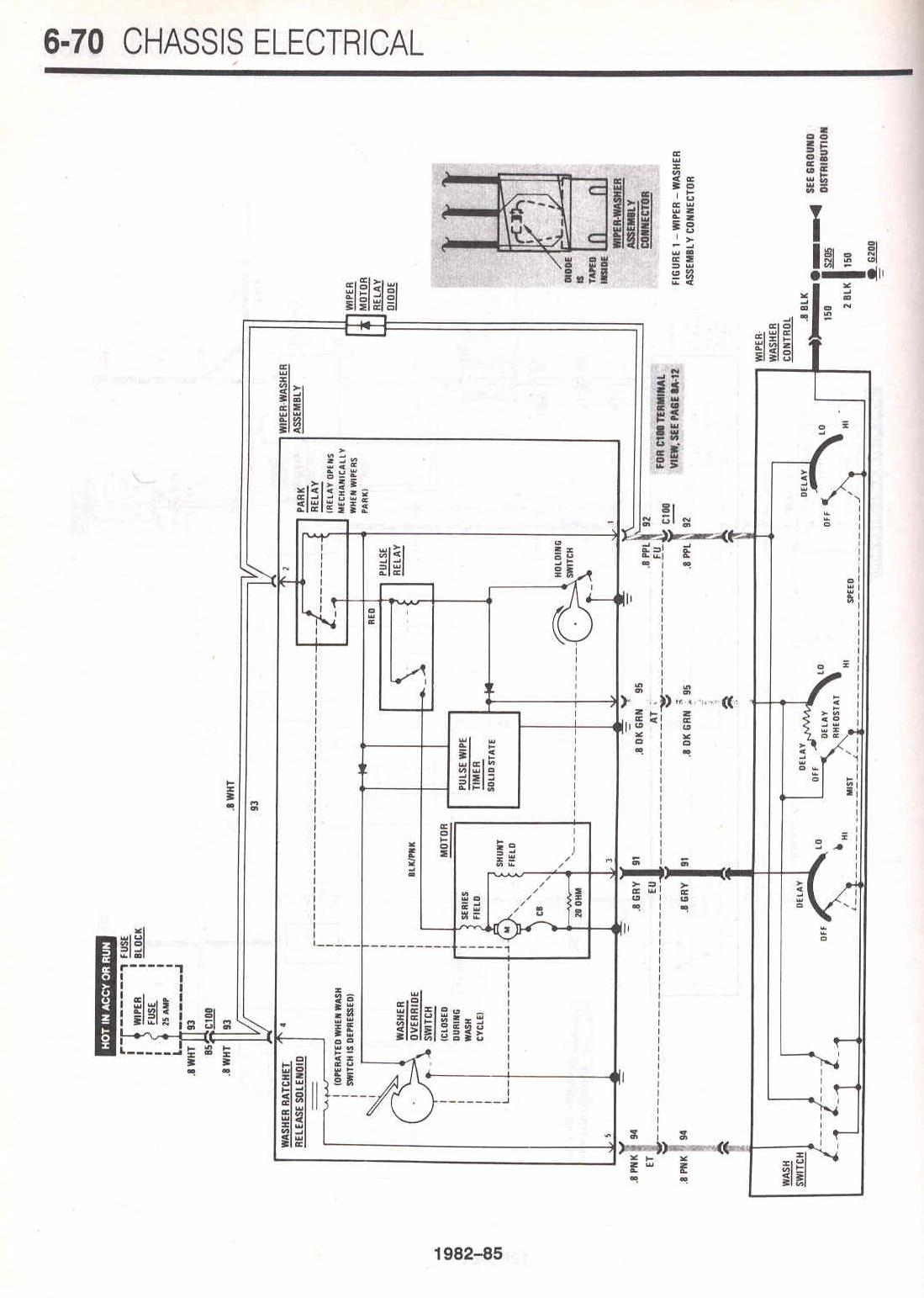

Delay Wiper Control



Note: These are JPEG files that range in size from 100K to 250K.  Place the mouse over the link to see the file size.
